Before flash drought
Higher footprint and larger hull volume, with a denser pre-stress canopy.
Loading point cloud…
Time-series Report
Flash drought reconstruction metrics across two chamber scans.
This hosted report keeps the full drought comparison in one place: the trusted local trait export, the masks and overlays used to audit the geometry, and the per-scan artifacts that explain how the canopy opened up over time.
Trusted local export
2 scans analyzed
Masks, overlays, and 3D views
Scans
2
30 Mar 2026 to 7 Apr 2026
Height delta
-12.2 cm
Support-plane height dropped clearly
Footprint delta
-0.112 m²
Visible canopy spread dropped sharply
Hull delta
-0.058 m³
3D occupancy contracted strongly
Leaf clump delta
-1
Fewer connected canopy components
Interpretation
The later scan is shorter, more open, and more fragmented. The updated 3D export shows lower support-plane height, lower footprint, and lower hull volume, which fits a canopy that contracted and lost cohesive spatial spread after the flash-drought treatment.
Timeline summary
| Date | Scan | Height | Footprint | Hull volume | Leaf clumps | Mask overlap | Green points | Trust |
|---|---|---|---|---|---|---|---|---|
| 30 Mar 2026 | Flash drought — Flea Hot flash drought | 39.7 cm | 0.3390 m² | 0.0880 m³ | 23 | 19.4% | 98.0% | Trusted |
| 7 Apr 2026 | Flash drought — Flea Hot flash drought | 27.5 cm | 0.2270 m² | 0.0300 m³ | 22 | 7.7% | 97.5% | Trusted |
Interactive 3D Comparison
RGB cloud, convex hull, height map, greenness map, and leaf labels from the same export.
These browser viewers use the point-cloud and mesh layers exported by the same drought analysis. Drag to orbit, scroll to zoom, and switch modes to compare structural spread, convex hull extent, vertical profile, and color-derived greenness between the two scans.
After 4 days of flash drought
Shorter and visibly contracted, with a markedly reduced footprint and hull volume.
Loading point cloud…
Photogrammetry base layer
Native RGB points
Convex hull wireframe
Height-colored geometry
Greenness-derived color
Leaf-component centroids
This interactive comparison gives a browser-friendly way to inspect the same 3D exports used in the analysis. Turn the photogrammetry mesh on as a base layer, adjust its opacity, and then compare RGB structure, convex hull extent, height, greenness, and leaf-label overlays on top.

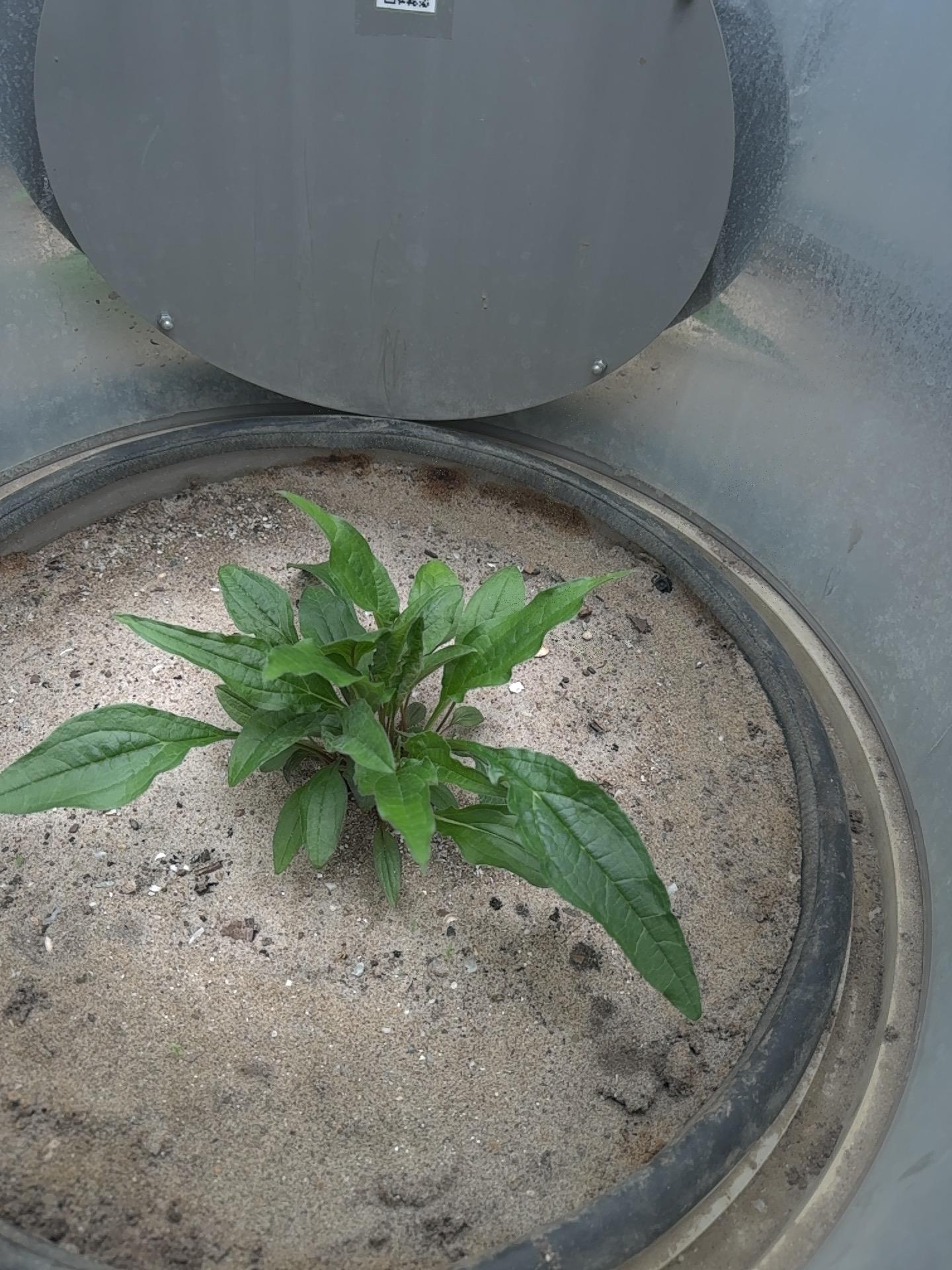

Before Flash Drought
30 Mar 2026
Photogrammetry mesh export from the initial chamber scan.
Height
39.7 cm
Footprint
0.3390 m²
Hull volume
0.0880 m³
Leaf clumps
23
- Package ID
- 0710A617-7476-4C75-B6D6-13647AD07014
- Tray
- Circular Pot
- Point count
- 32524
- Mask overlap
- 19.4%
- Green points
- 98.0%
- Source
- Photogrammetry Mesh

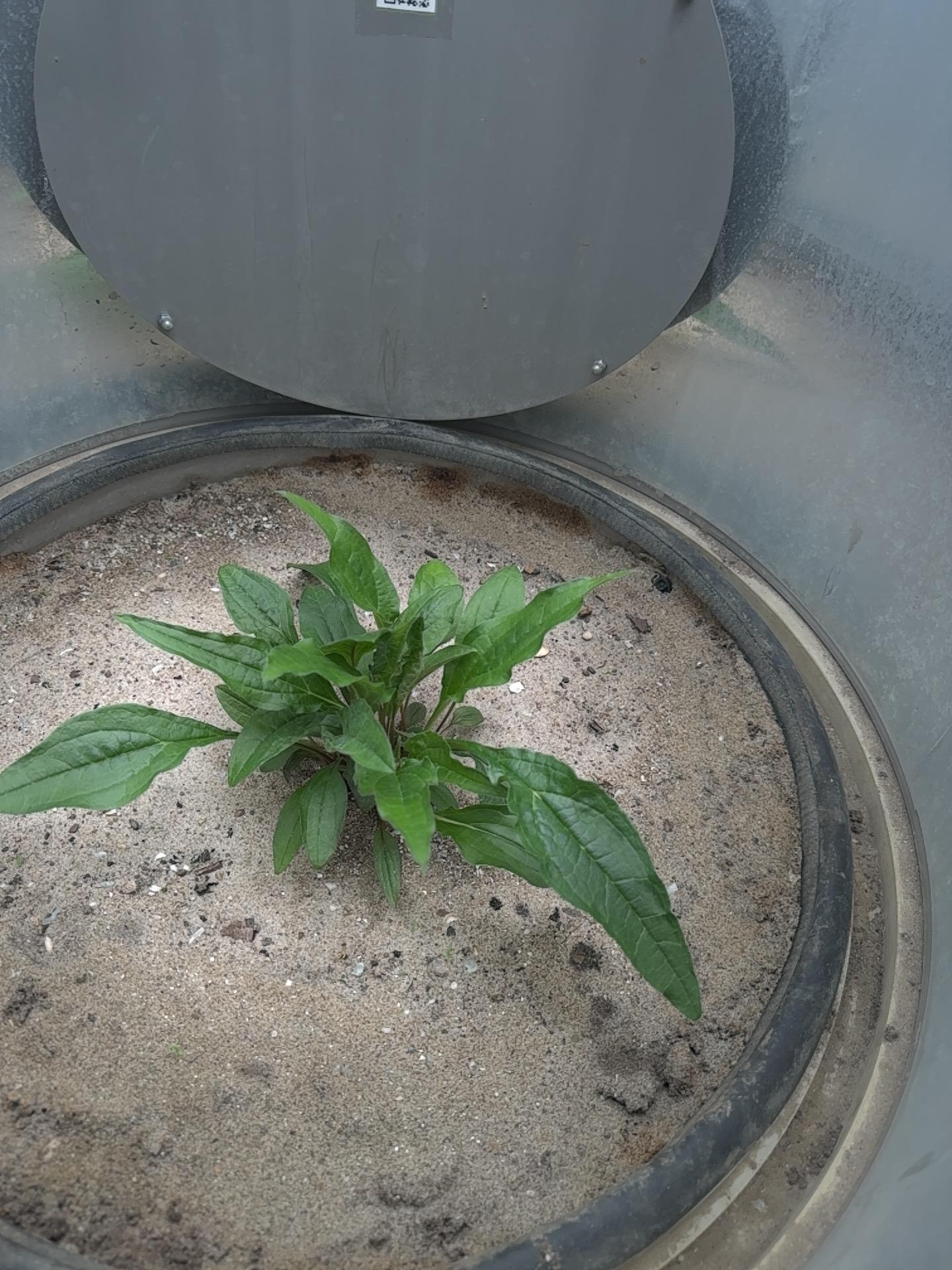

Thumbnail

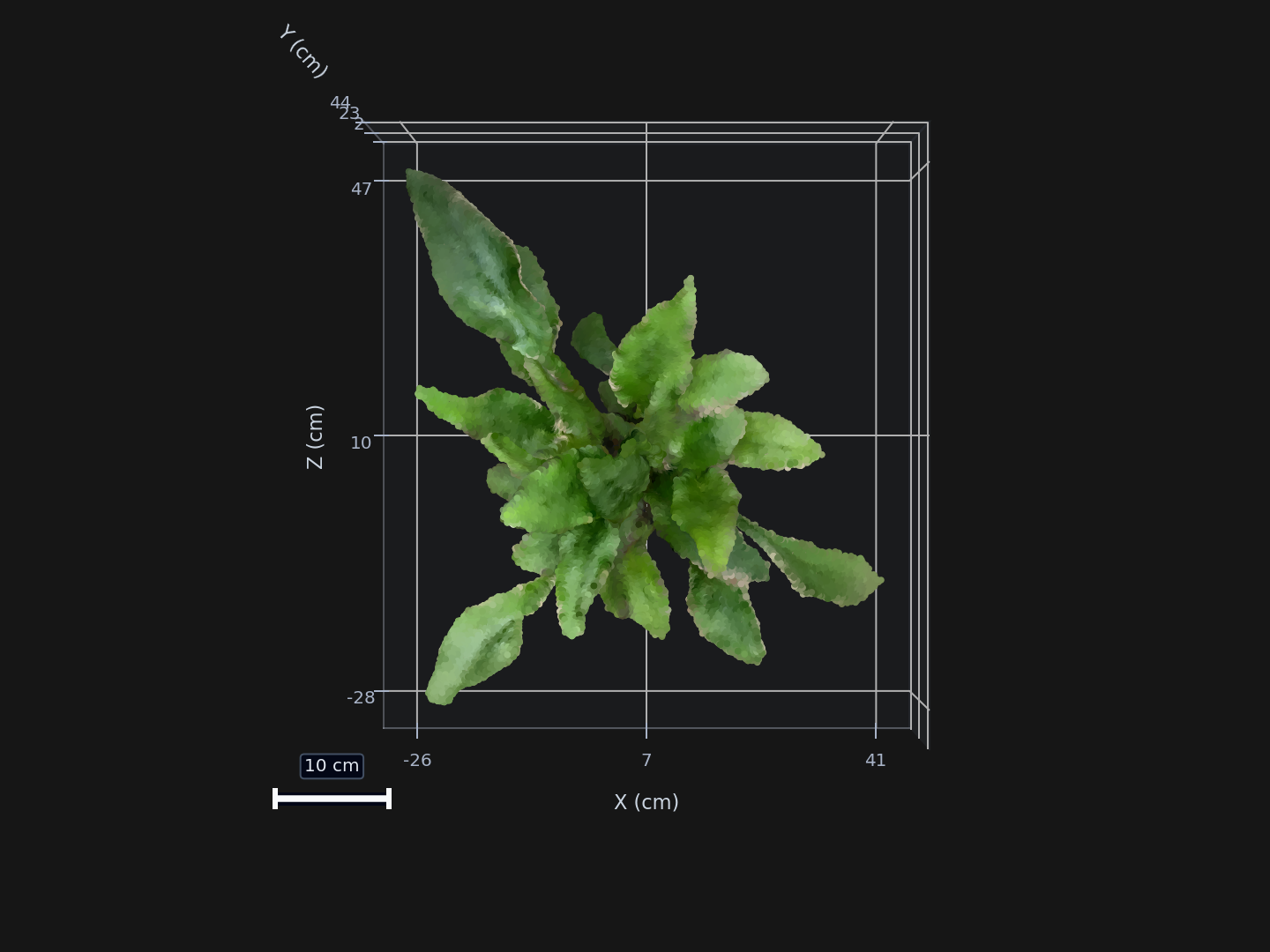

Top view

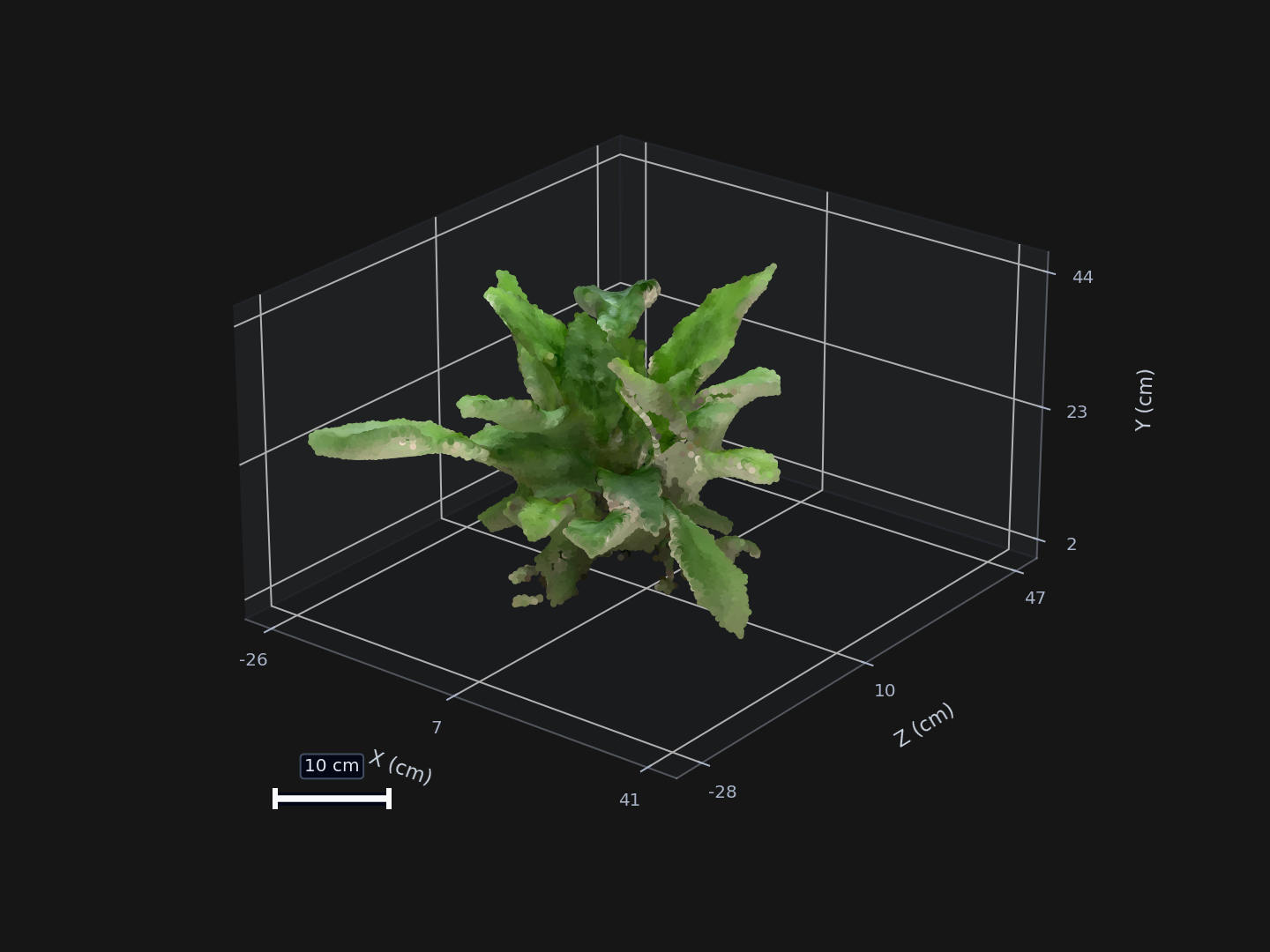

Perspective view

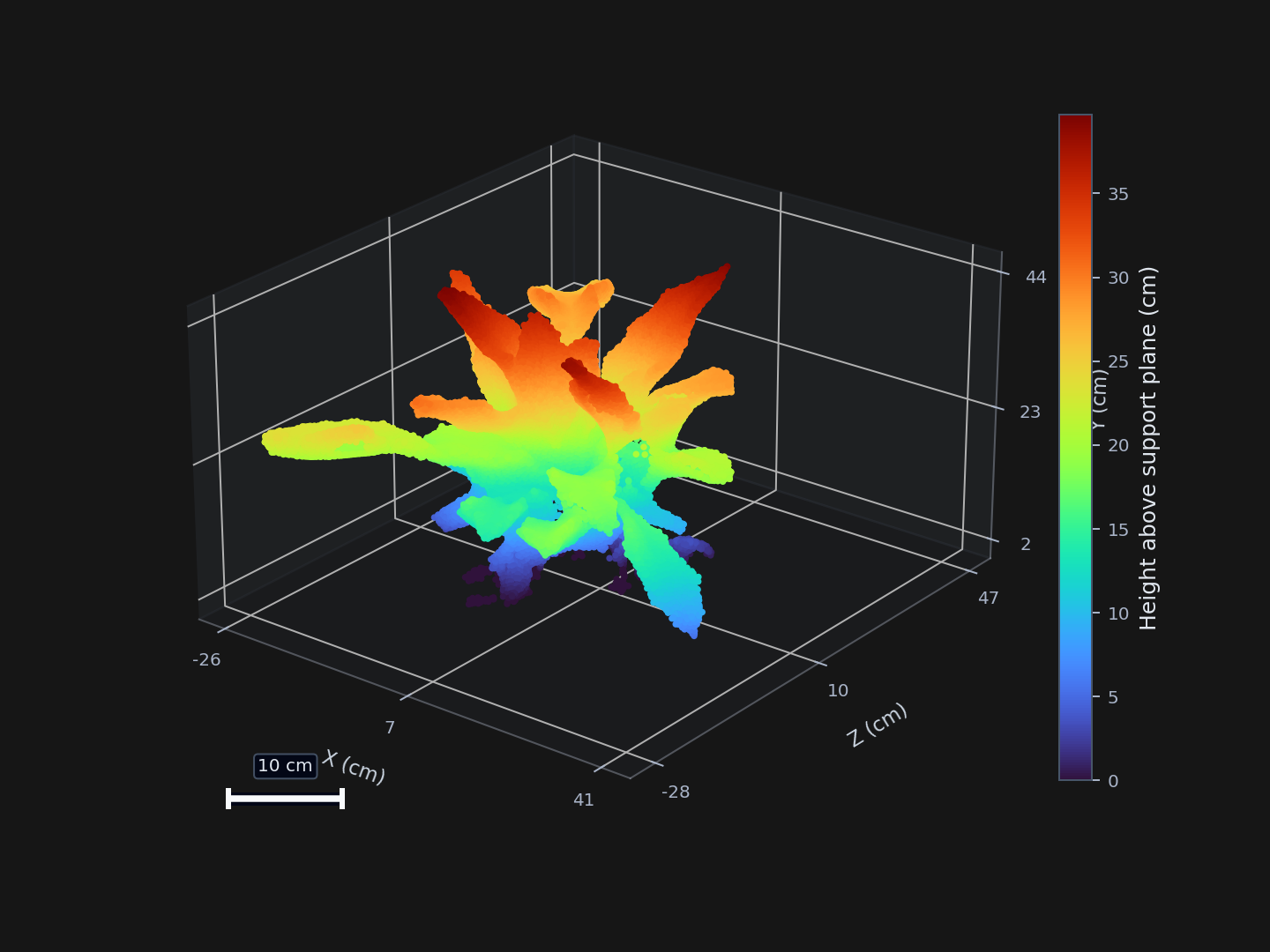

Height view

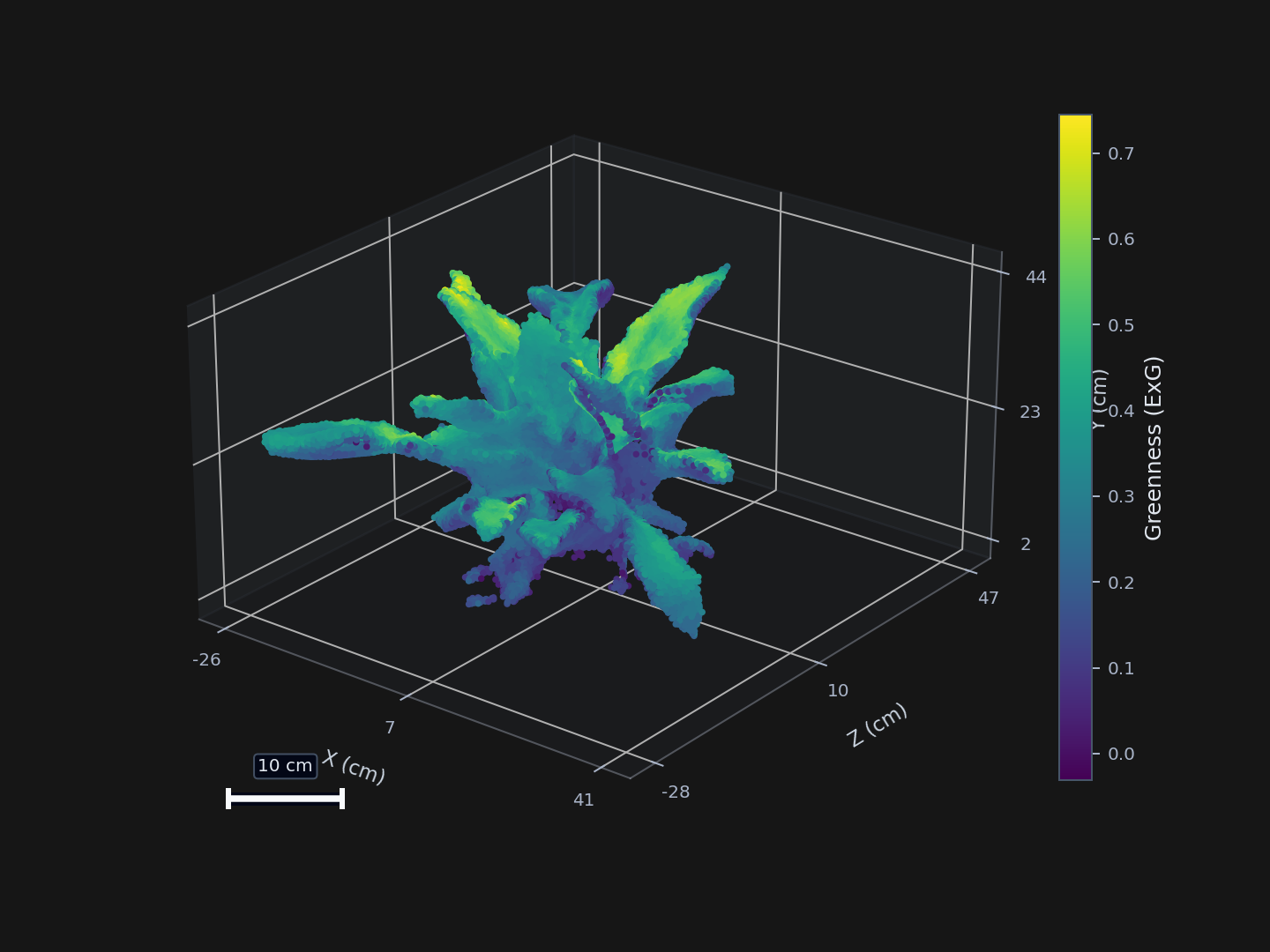

Greenness view

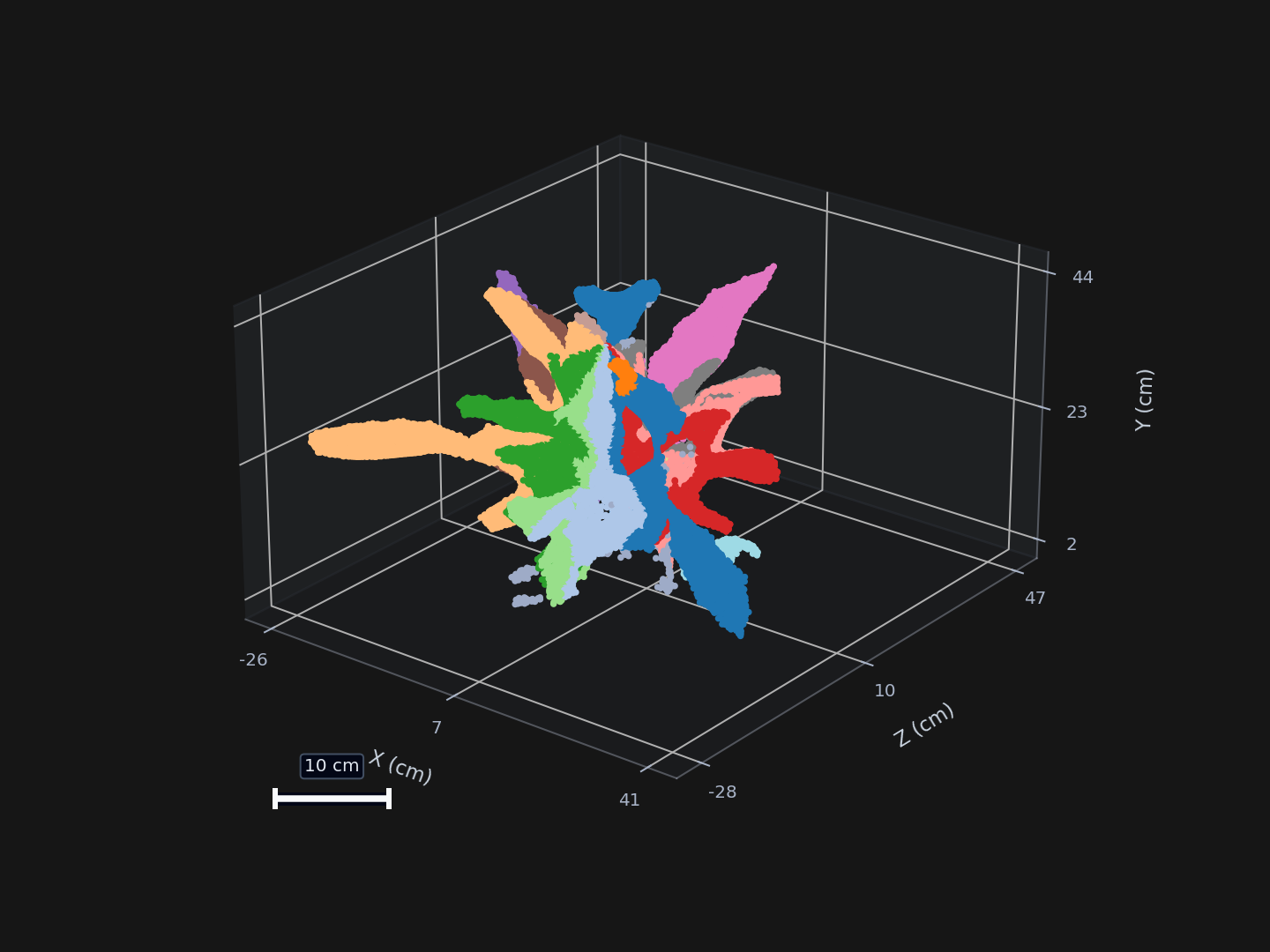

Label view
Trust note
- 3D structure recovered cleanly for trait export.
- This scan supports the denser, more cohesive pre-stress canopy interpretation shown on the main site.

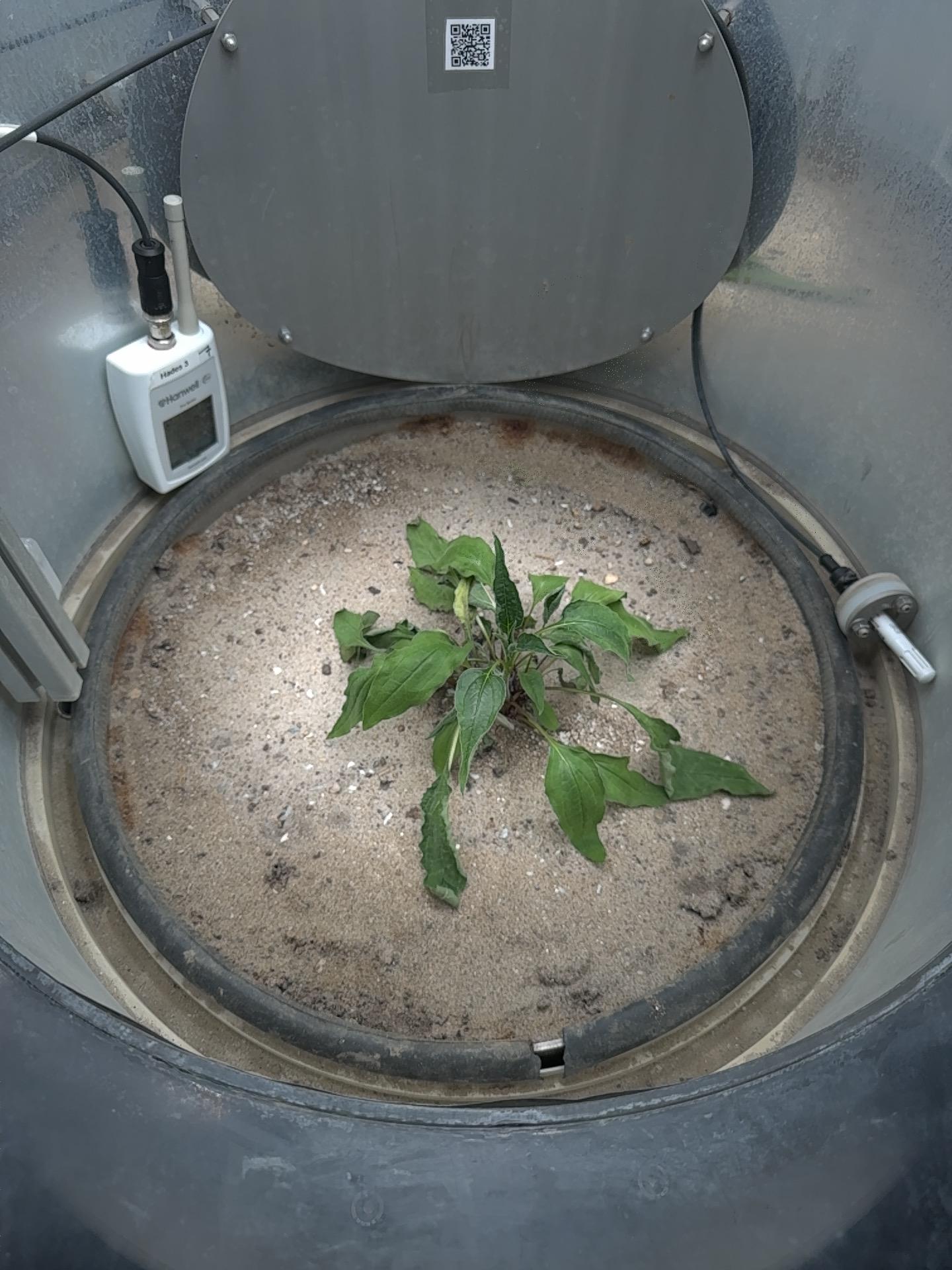

After 4 Days of Flash Drought
7 Apr 2026
Photogrammetry mesh export from the later chamber scan after the treatment window.
Height
27.5 cm
Footprint
0.2270 m²
Hull volume
0.0300 m³
Leaf clumps
22
- Package ID
- 672B5316-35AA-4657-8C22-779A87D0CEEB
- Tray
- Circular Pot
- Point count
- 21274
- Mask overlap
- 7.7%
- Green points
- 97.5%
- Source
- Photogrammetry Mesh
Thumbnail

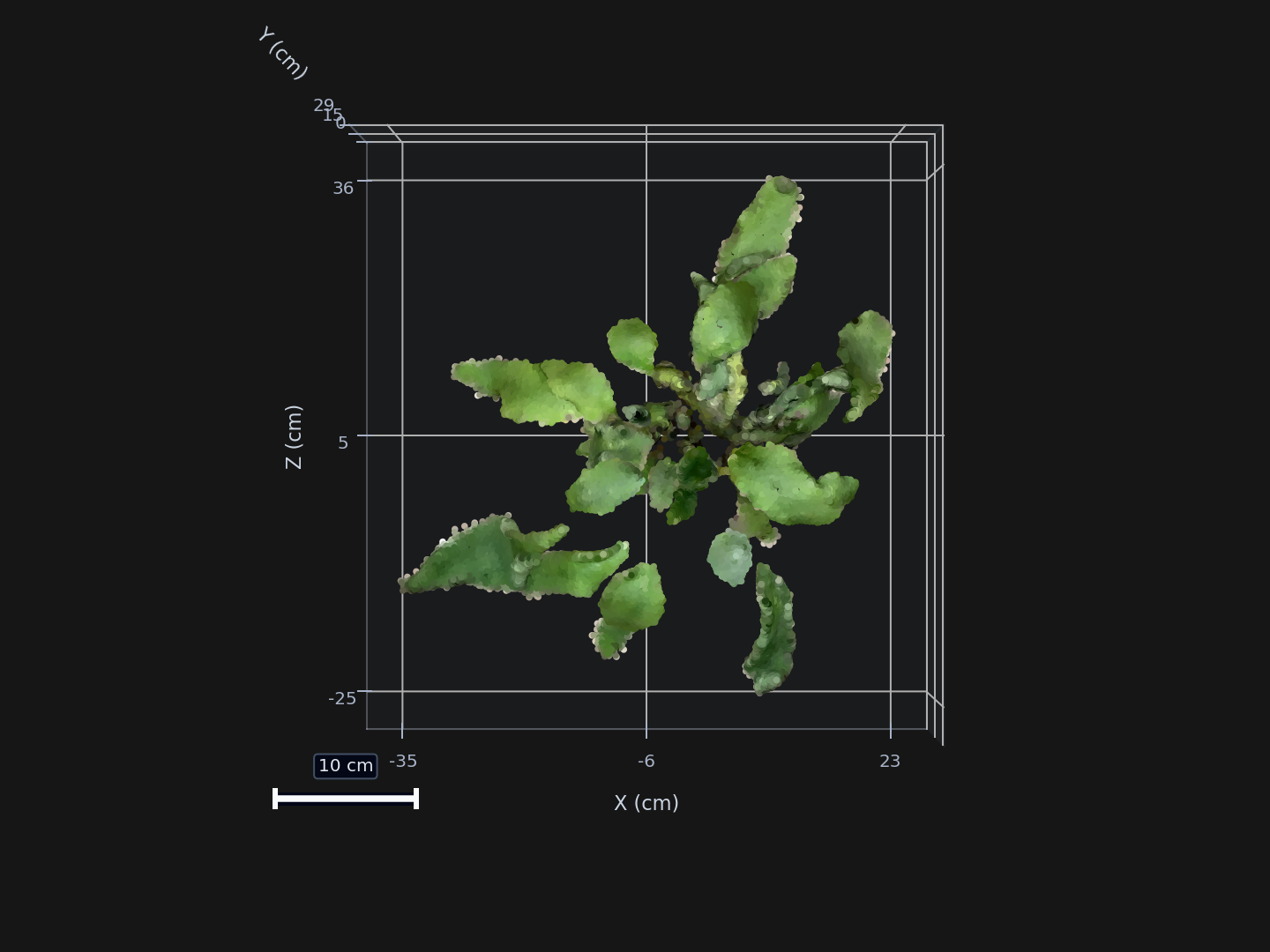

Top view

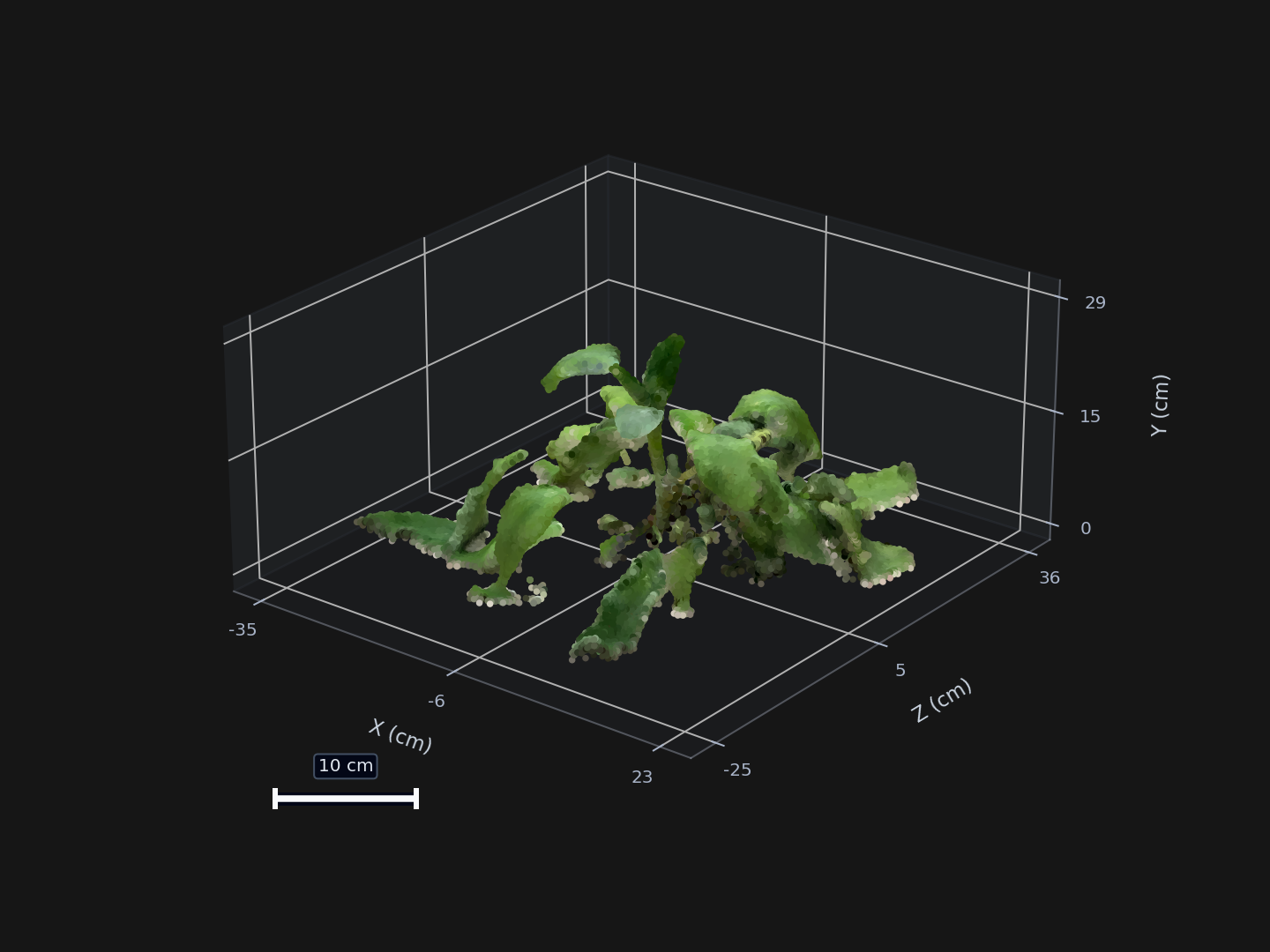

Perspective view

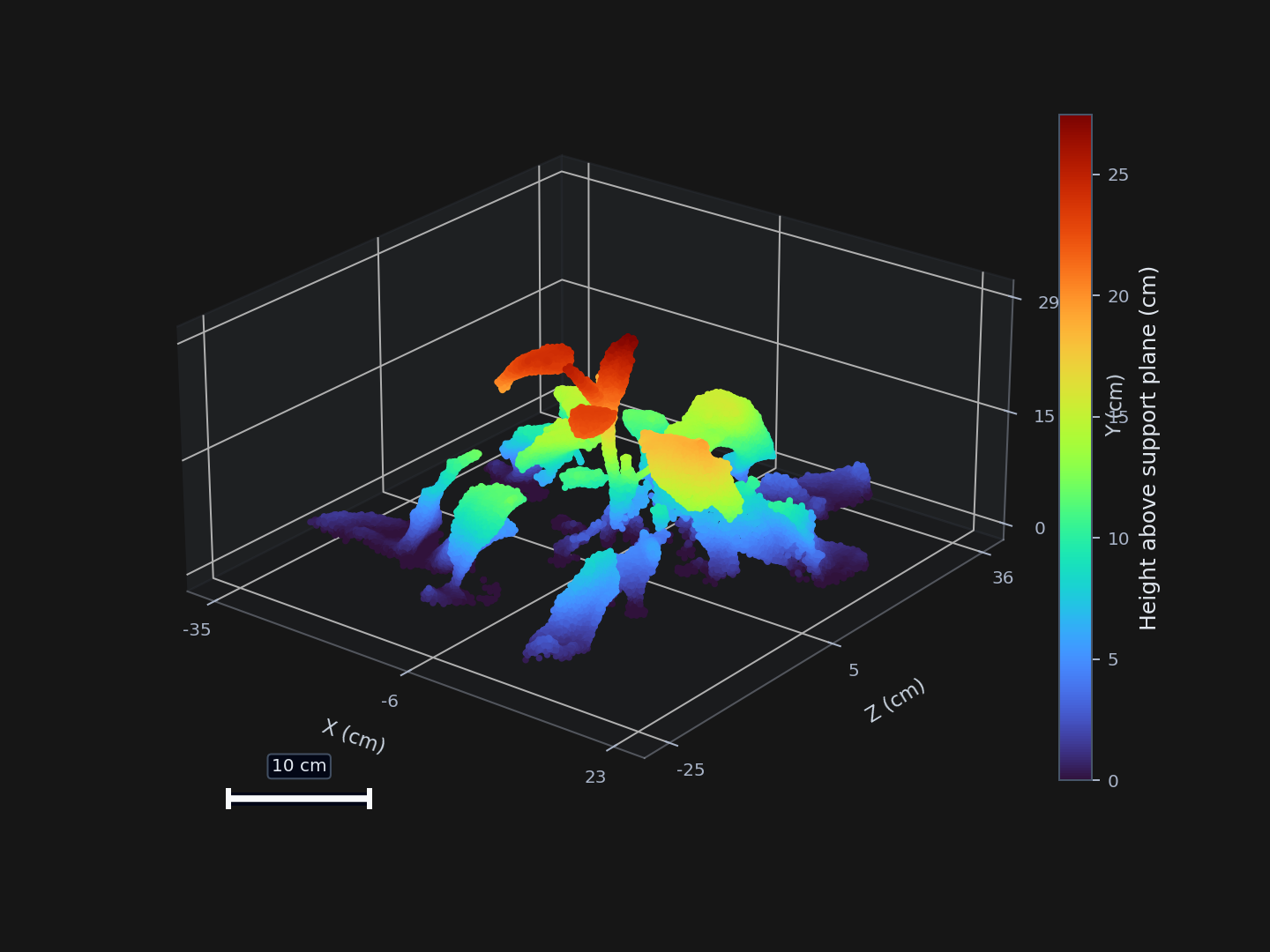

Height view

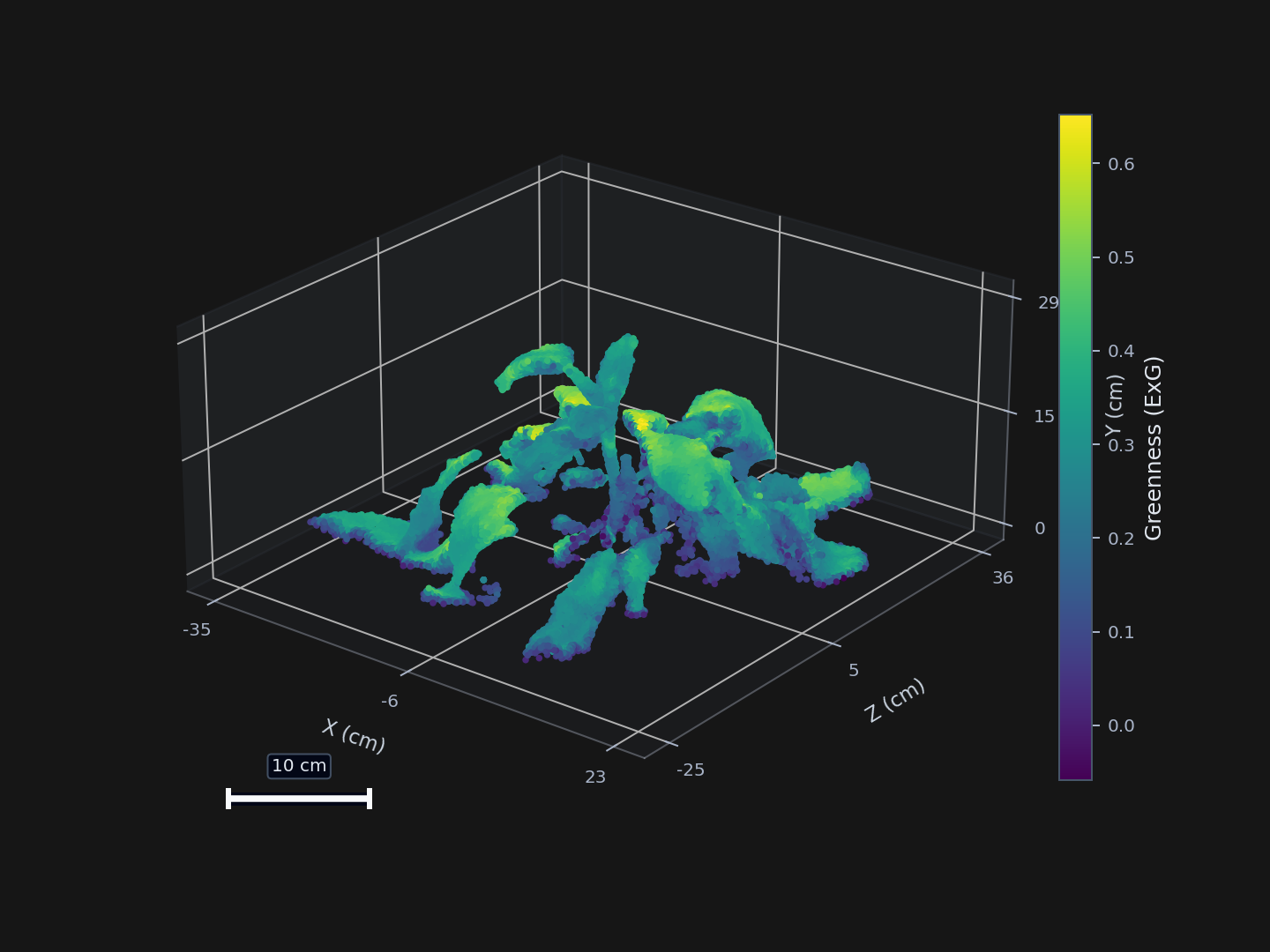

Greenness view

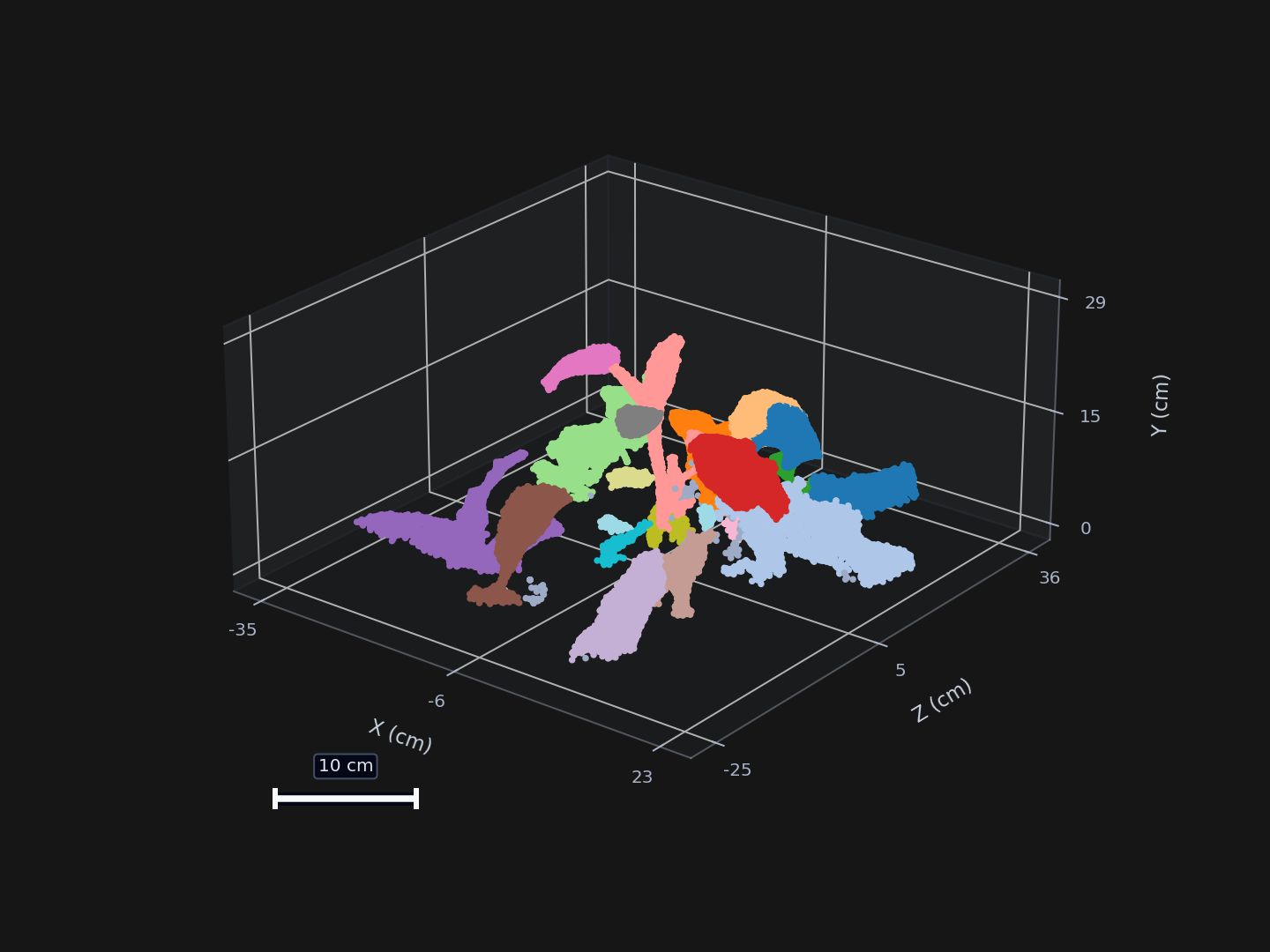

Label view
Trust note
- 3D structure recovered cleanly for trait export.
- The later scan preserves enough structure for comparison, but the lower mask overlap fits a canopy that has opened up and fragmented.
